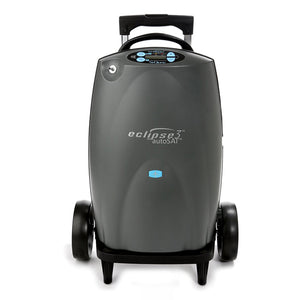

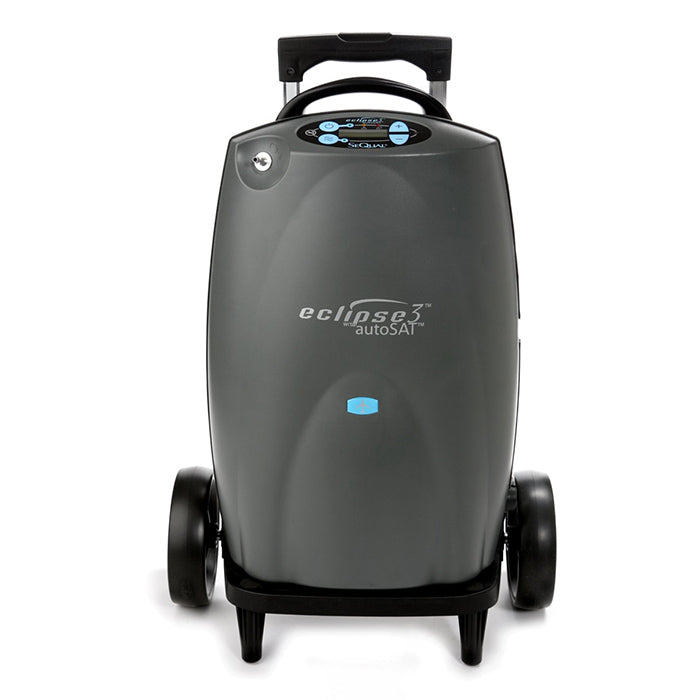

Reconditioned Sequal Eclipse 3 Portable Oxygen Concentrator. 3 Month warranty.

Owner Manual

The Eclipse is a single solution with both continuous and pulse dose options. It's the only personal ambulatory oxygen system on the market - a concentrator powerful enough to be your stationary system and mobile enough to ambulate. Use it around the house, the town and the world. This reconditioned unit comes with:

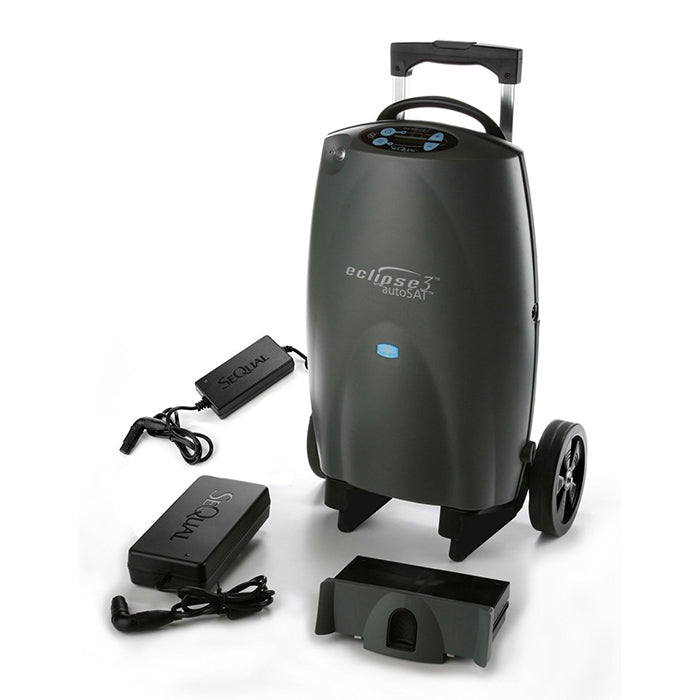

• Eclipse Concentrator
• 1 Battery
• AC Charger
• DC Charger
• Travel Cart NOT included
• 90 Day Warranty

This unit is designed to run up to 3LPM on Continuous flow and up to 6LPM on Pulse Flow.

Battery Duration on Continuous Flow
1LPM = 3 Hours
2LPM = 2 Hours
3LPM = 1.3 Hours

Battery Duration on Pulse Flow
1LPM = 6 Hours
2LPM = 5.2 Hours
3LPM = 3.5 Hours

Dimensions
Length: 12.3 in. (31.2 cm)
Height: 19.3 in. (49 cm)
Depth: 7.1 in. (18 cm)

Specifications

• 18 Pounds actual weight
• 30 Pounds shipping weight
• Able to use at night with CPAP Machine
• Able to use with 12-19 Volts DC 8 Amps max
• Able to use with 100-240 Volts AC 50/60 Hz
• Max consumption 145w at 3LPM Continuous flow
• Use over 13,123 feet elevation will result in lower purity output

Reaches maximum purity within 5 minutes
48 Decibel at 3LPM, 38 Decibel at 2LPM
